Boratas Grizzly Screens have been designed for the toughest applications, capable of high capacity and the ability to process abrasive material. These screens have a very robust design, which allows them to operate under tough conditions (as primary or secondary). They perform particularly very well when used to remove the fines between two crushing stages of a plant.

Boratas Grizzly Screens are very sturdy, shockproof, and long lasting. These machines are also easily to maintain, so the operating costs are minimized while the production rate and quality remain very high.
ModelDimensions
(mm)
Speed
(rpm)
Power
(kW)
Weight
(kg)
SF 10201000 x 2000970 - 10607,52600
SF 13241300 x 2400970 - 1060113500
SF 14301400 x 5000970 - 1060224500
Grizzly Screens Grizzly Screens Grizzly Screens

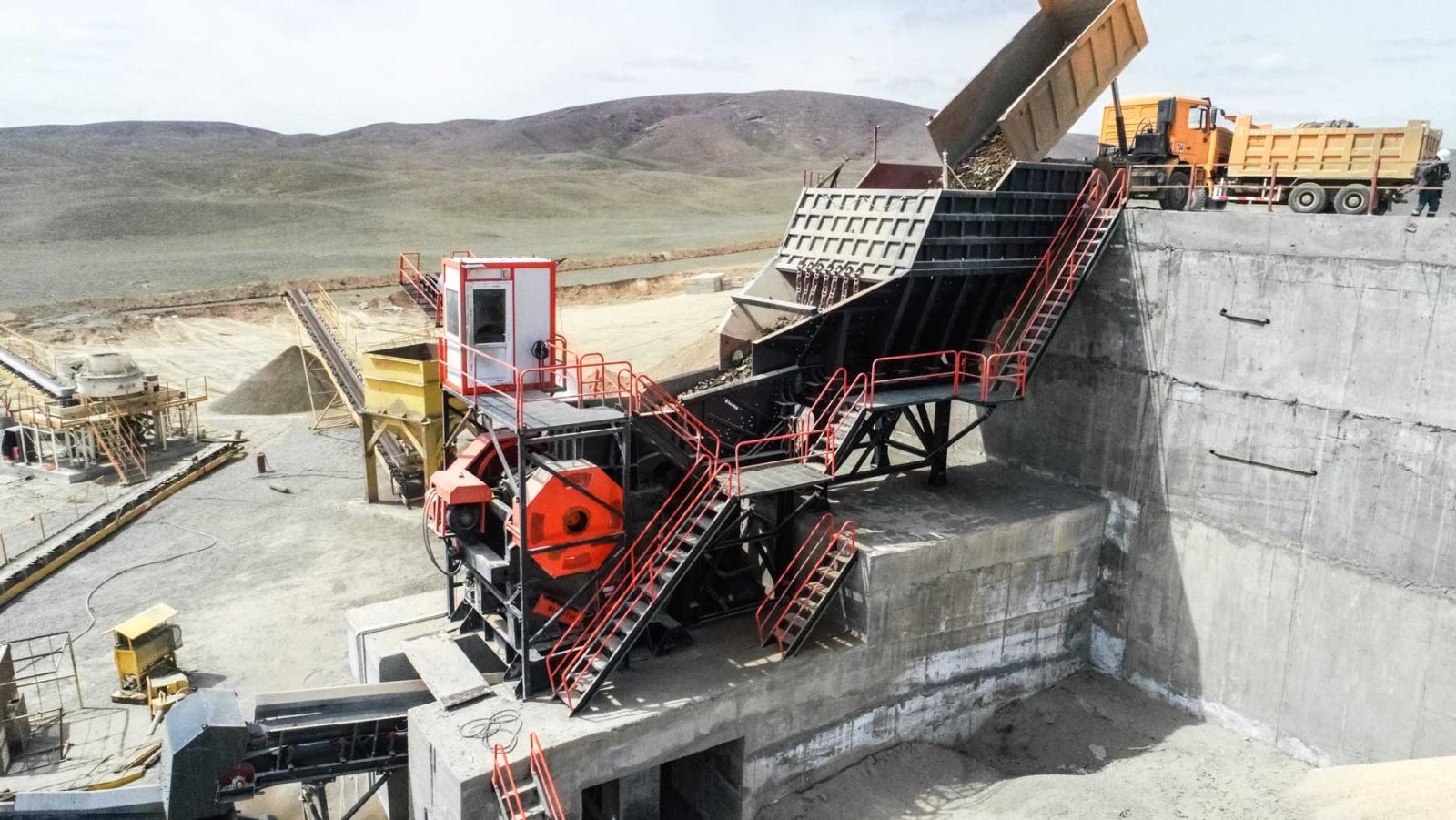

Boratas Crushing and Screening Plant
Crushing and Screening Plant with 250-275 t/h crushing material: Bazalt
