Hopper and Feeder
VB series
Vibro Feeder
Genel
Tablo
PDF
Resimler
Videolar

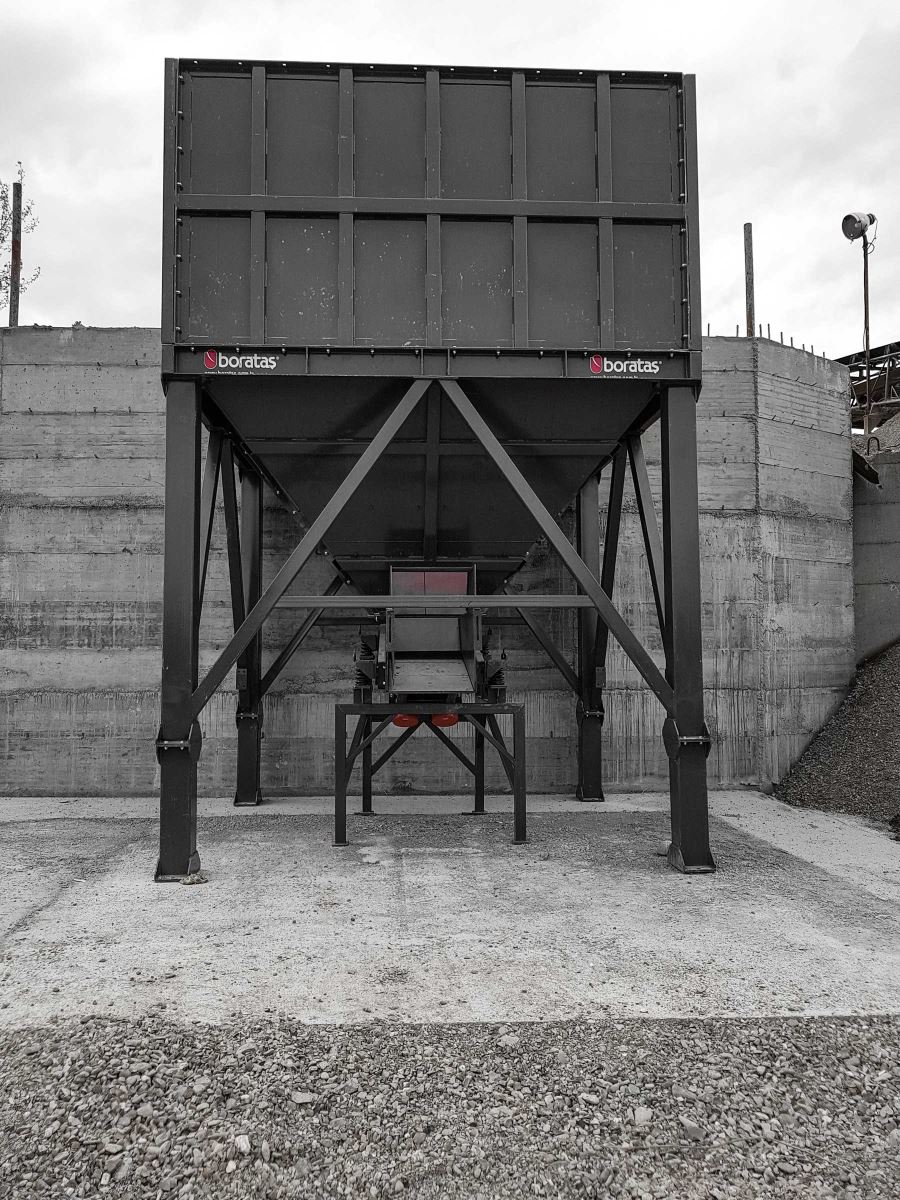

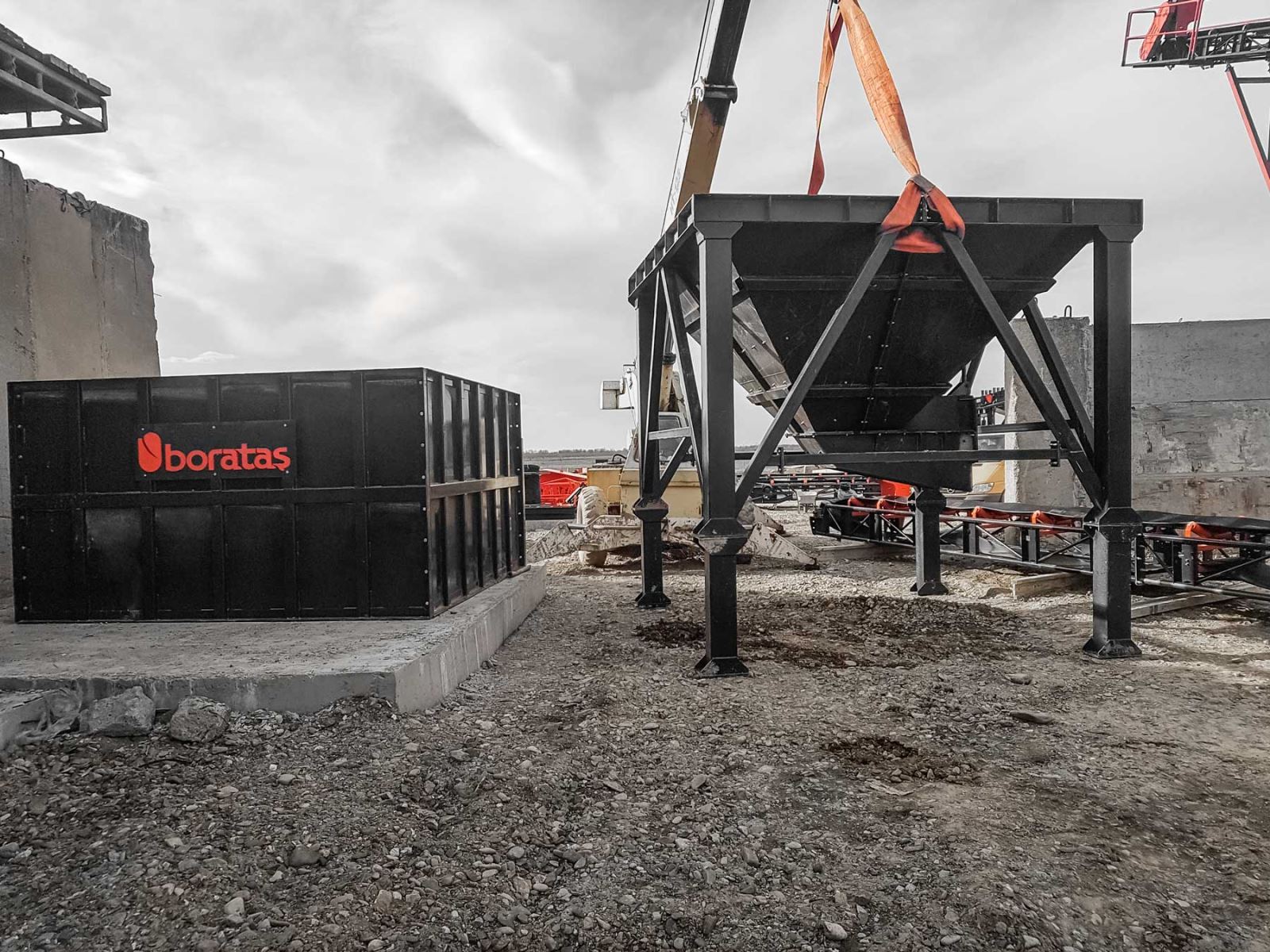

The hoppers are located at the very beginning of the crushing plant. They are usually followed by a vibrating feeder.

The hoppers are very important because they ensure the loading of all the materials to be crushed. The vibrating feeder, as its name suggests, transfers the loaded materials from the hopper either to the primary crusher or to a grizzly screen. The grizzly screen separates the fine materials in order to increase the efficiency of the crusher. As for the separated materials, they pass directly to the secondary crusher.


Boratas feeding machines are very sturdy, shockproof, and long lasting. These machines are also easy to maintain, so the operating costs are minimized and the production rate remains high.
ModelWidth
(mm)
Length
(mm)
Capacity
(t/h)
Engine
(kW)
Weight
(kg)
VB 65146501400100 - 1502 x 1,1500
VB 85178501700150 - 2002 x 1,5700
VB 102010002000200 - 2502 x 2,21000
VB 122012002000250 - 3502 x 3,21200
Vibro Feeder Vibro Feeder Vibro Feeder Vibro Feeder

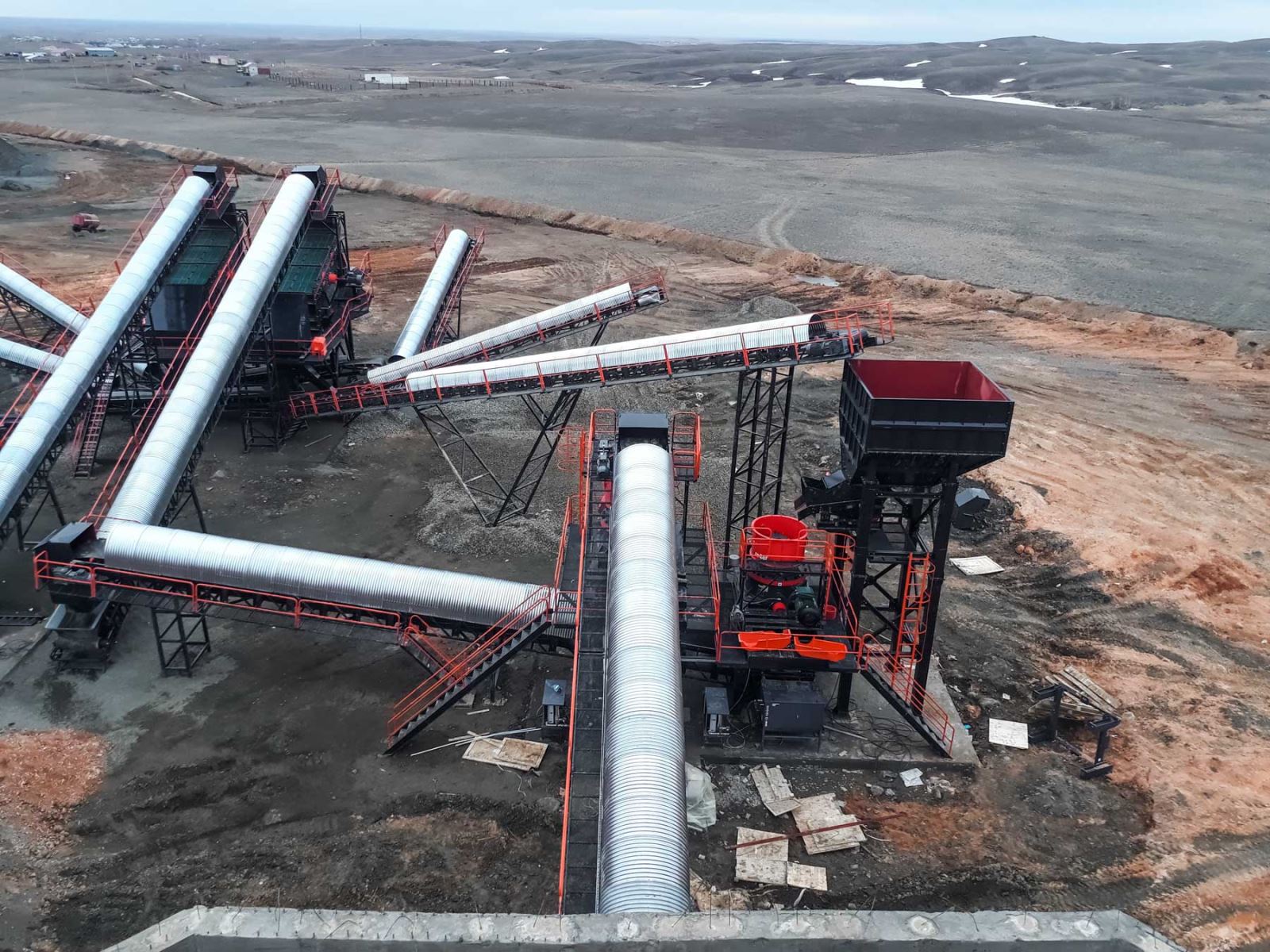

Boratas Machinery Crushing and Screening Plant
Crushing and Screening Plant with 250-275 t/h Crushing material: Bazalt
