The hoppers are located at the very beginning of the crushing plant to receive the raw material. They are usually followed by a vibrating feeder to continuously feed the material to the crusher.

Vibrating feeders are very sturdy, shockproof, and long lasting. These machines are easily maintainable, thus the operating costs are minimized and the production capacity remains high.
ModelWidth
(mm)
Length
(mm)
Grizzly Size
(mm)
Capacity
(t/h)
Engine
(kW)
Weight
(kg)
TB 60520250010001202 x 3,22500
TB 90950400012002252 x 43600
TB 110120050002 x 10003502 x 7,55100
TB 140137060002 x 12006802 x 116800
TV 1052102052002 x 900120154650
TV 1262122060002 x 1200225227250
TV 1462142060002 x 1200350309200
TV 1862182060002 x 12007004511000

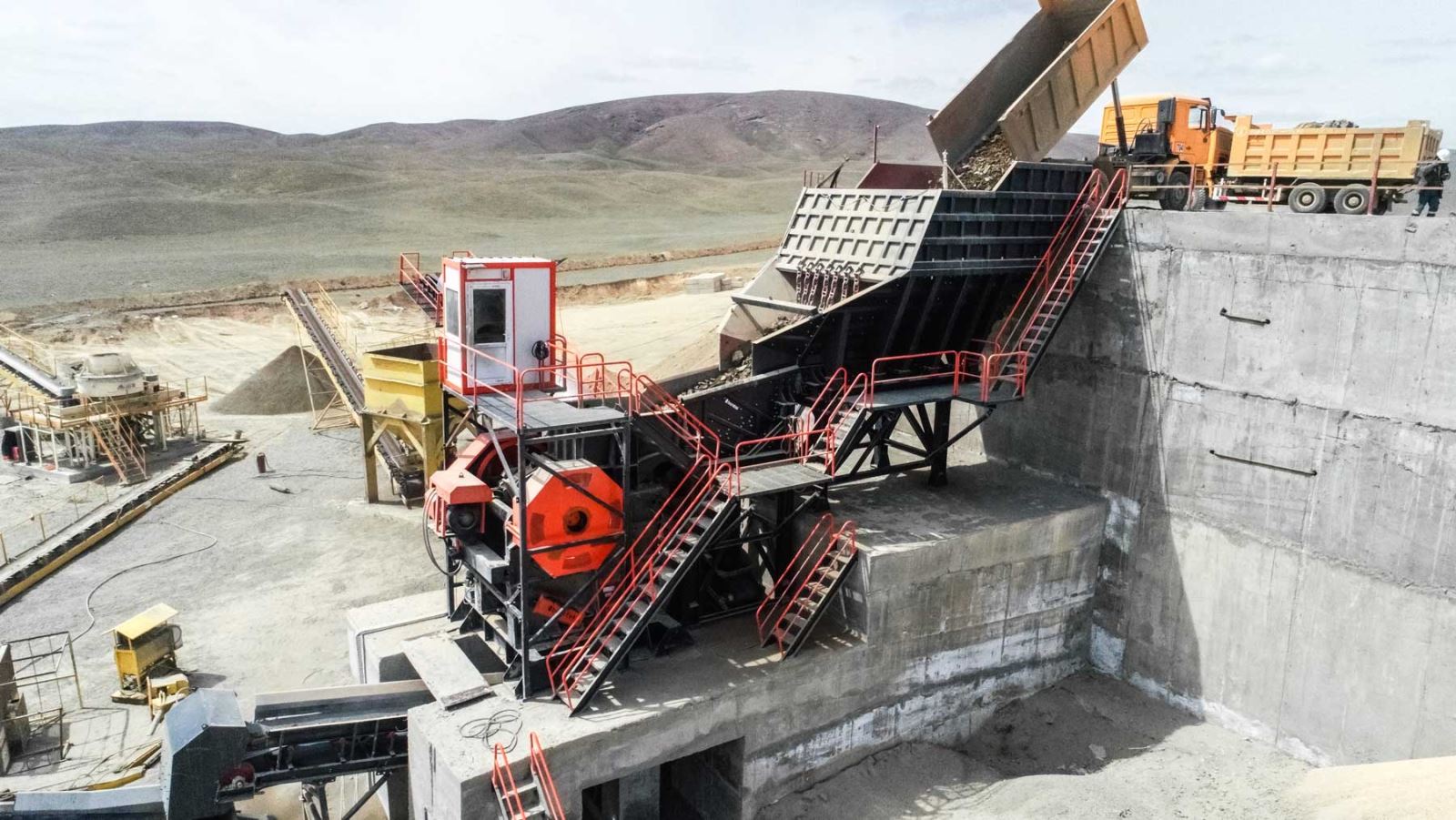

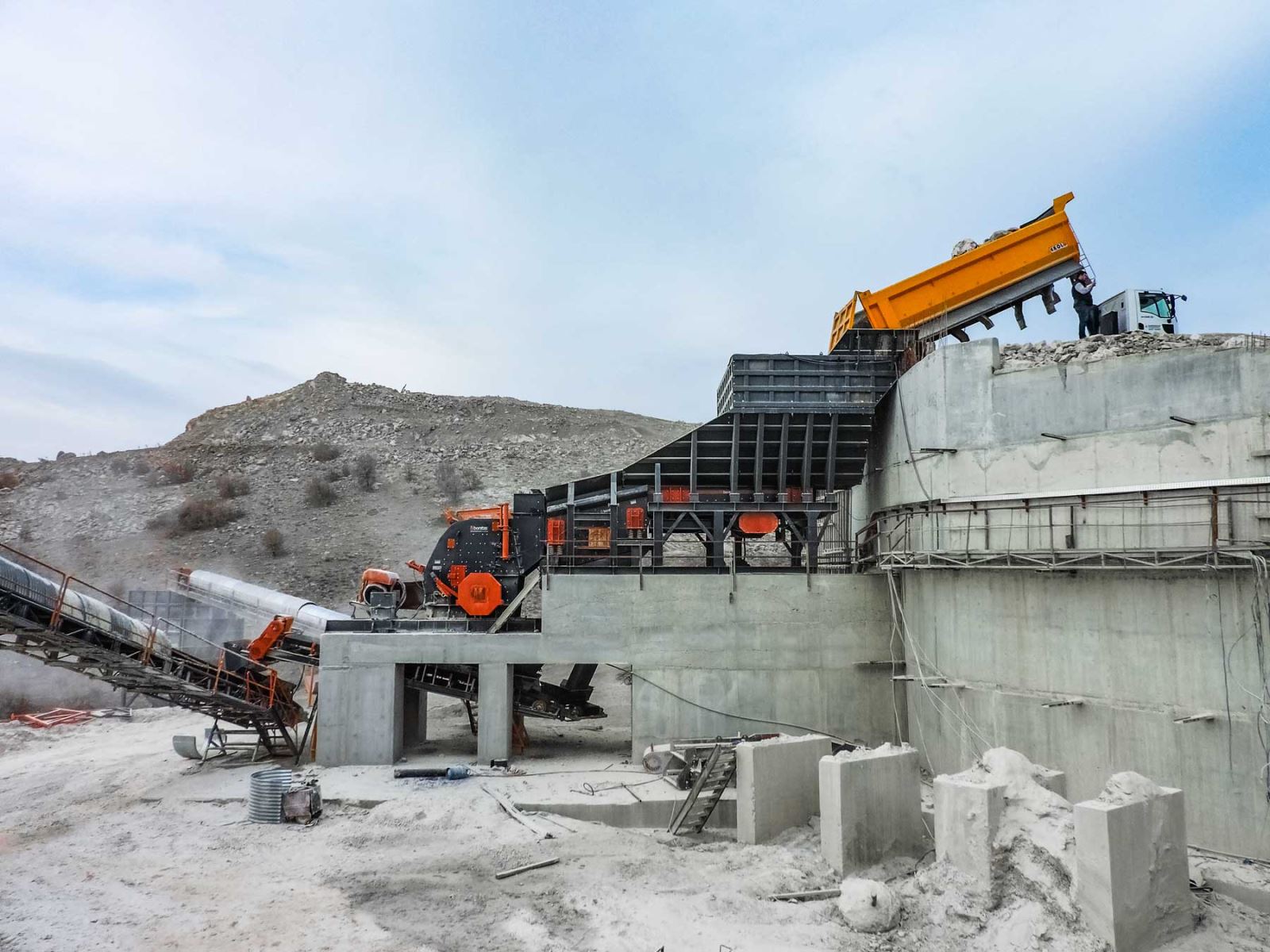

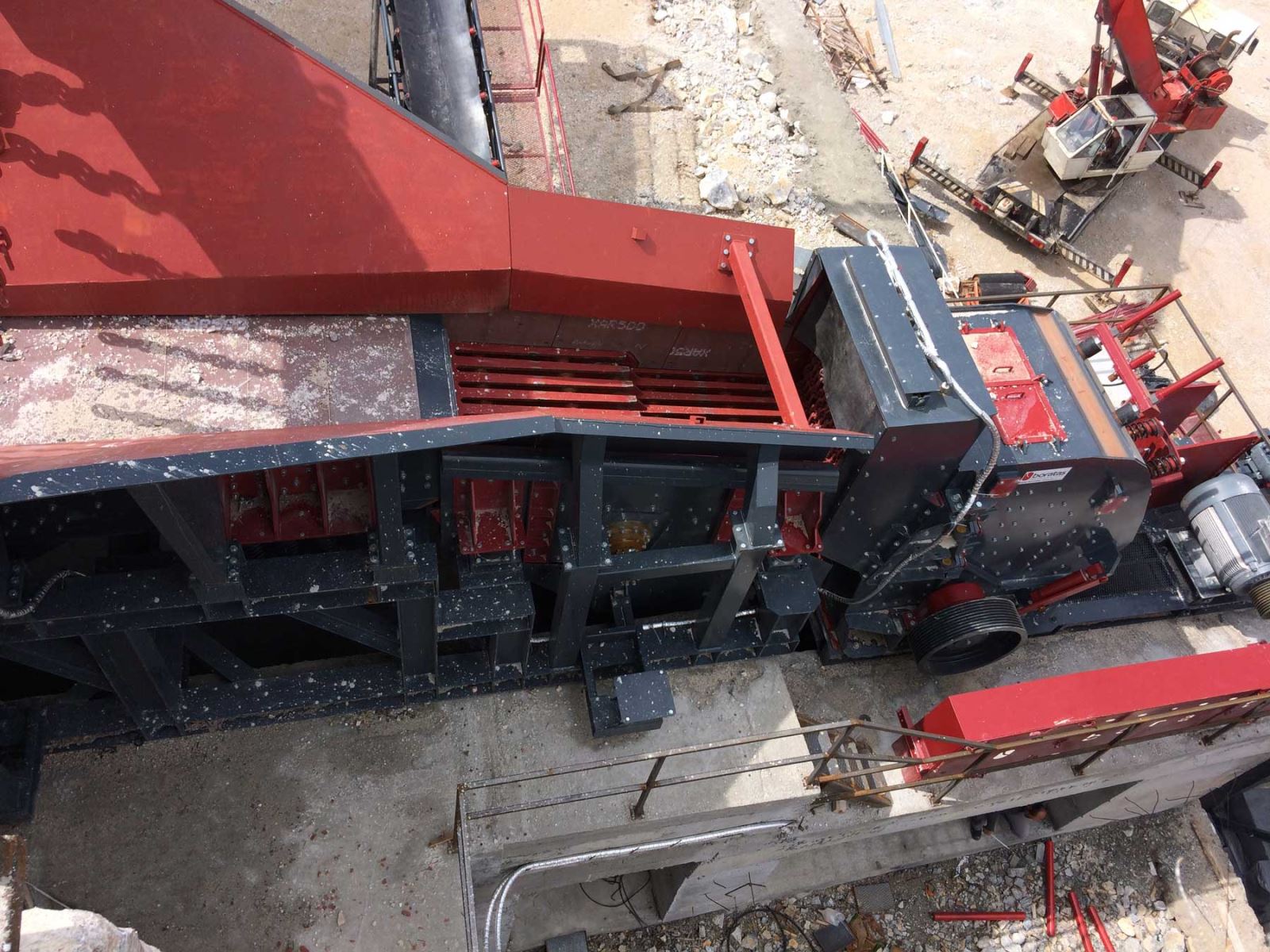

Vibrating Grizzly Feeder Vibrating Grizzly Feeder Vibrating Grizzly Feeder
Boratas Machinery Crushing and Screening Plant
Crushing and Screening Plant with 250-275 t/h Crushing material: Bazalt
