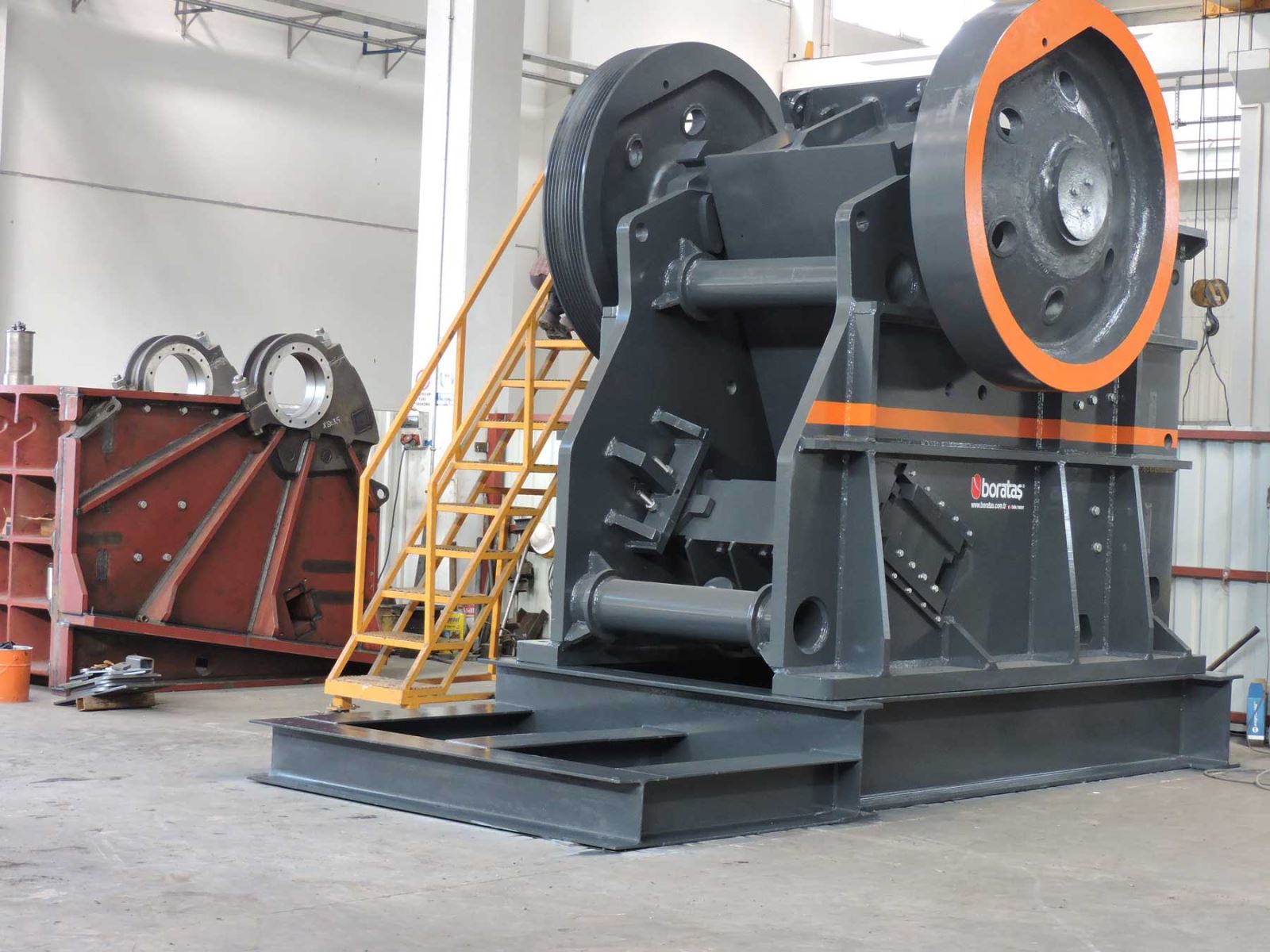

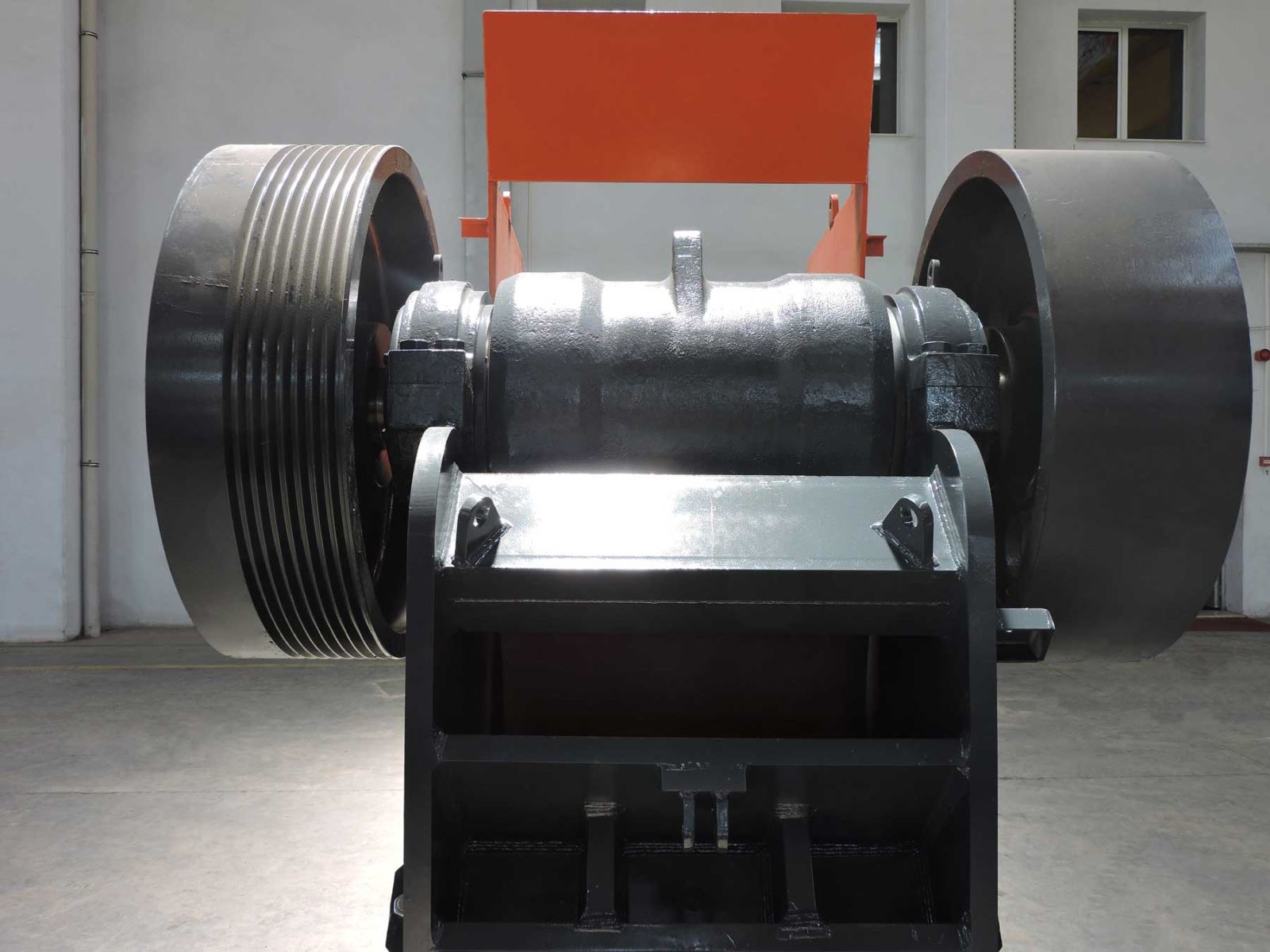

Jaw crushers are commonly used in the primary crushing stage to obtain quarry aggregates, however, it is not uncommon to use them in the secondary stage as well. These machines are made to crush all kinds of stone, minerals, slag, etc no matter how sturdy and abrasive they are.

Jaw crushers are designed to increase the productivity rate to the maximum while minimizing costs. These are made to be reliable and easily maintainable.

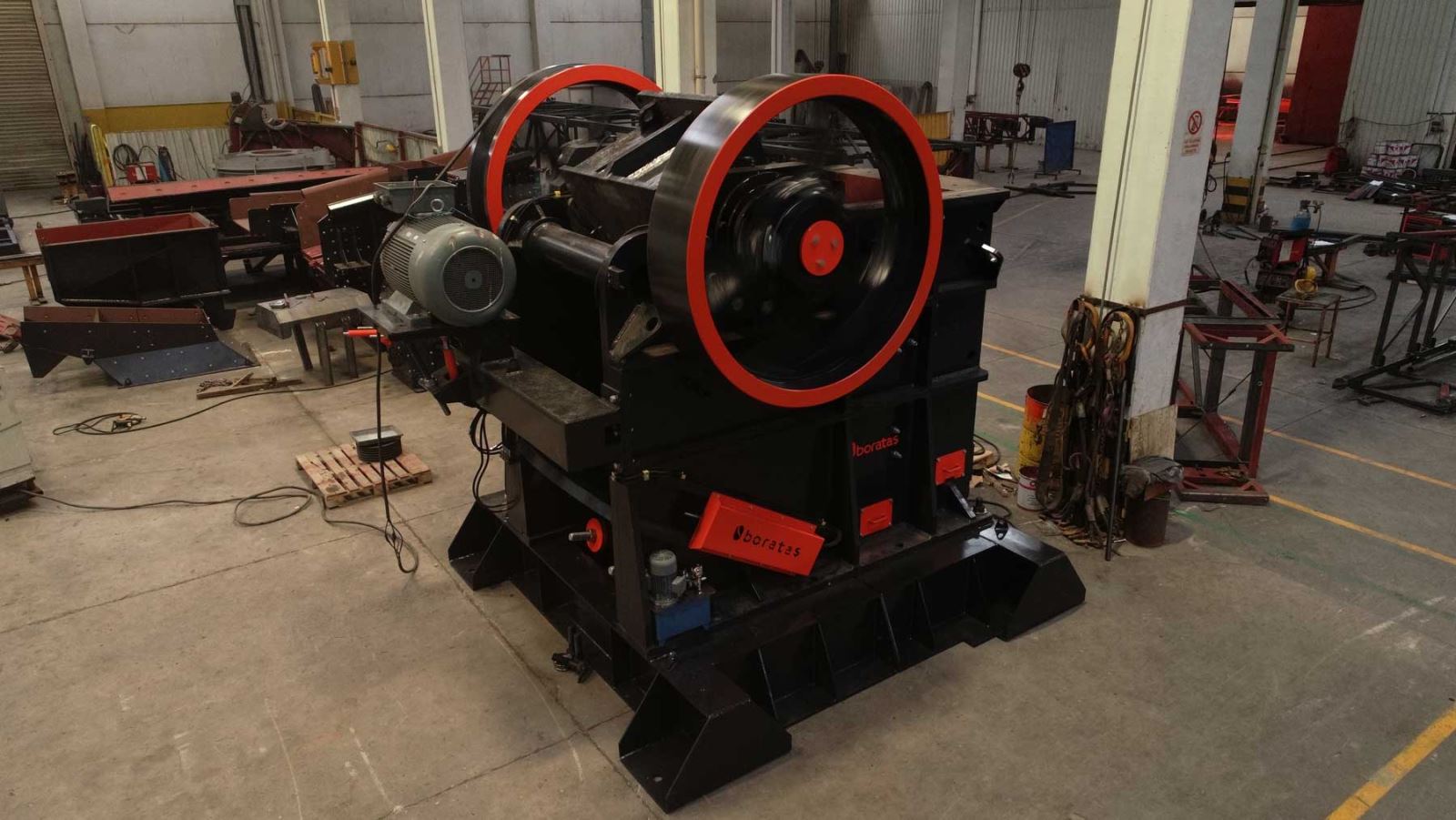

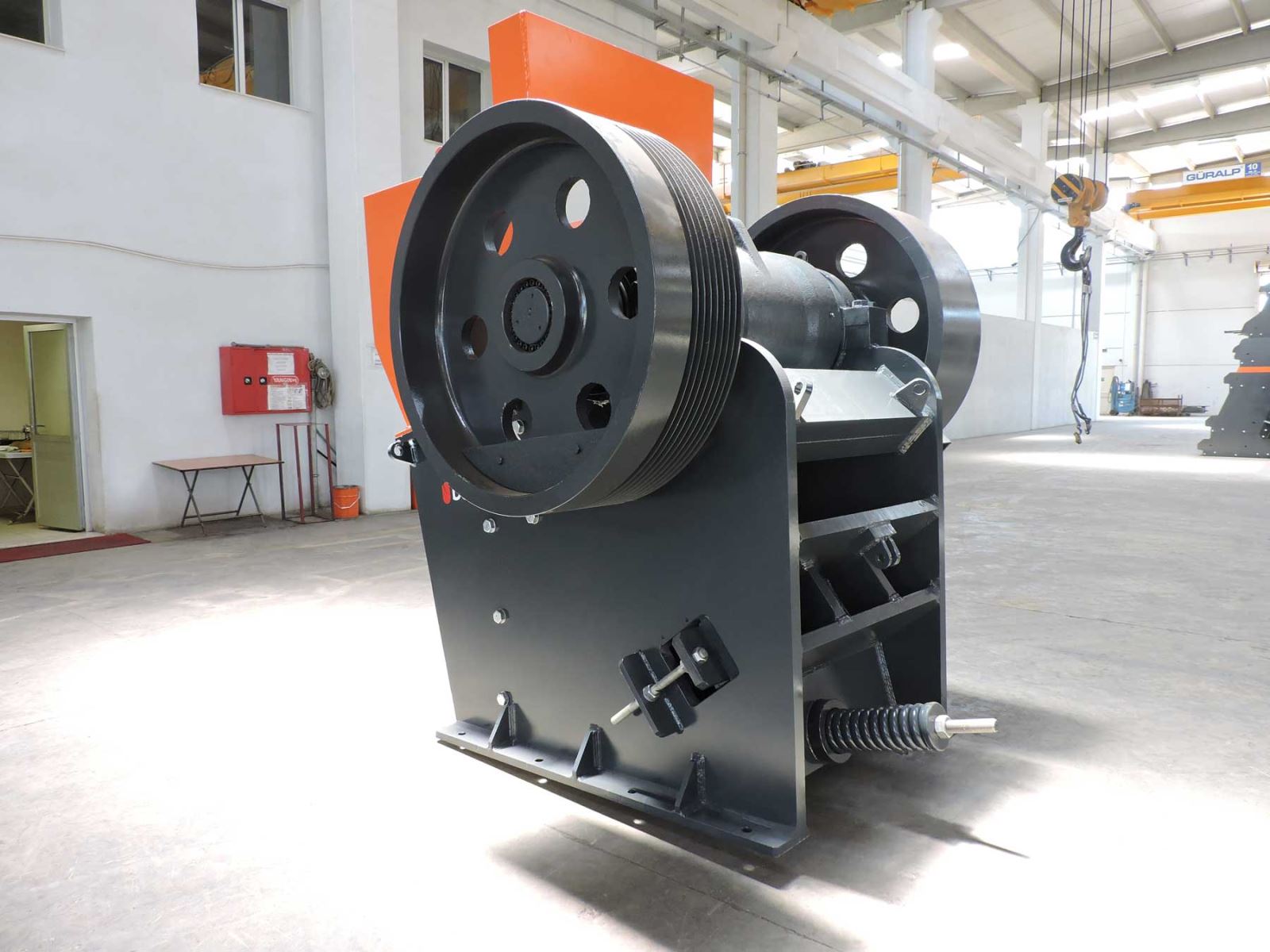

The essential components of a jaw crusher are:

• The flywheel
• The pitman
• The rocking plate
• Fixed and mobile jaw
• Engine
• Spring

The crushing of the materials comes from the top to bottom movement of the swing jaw. This movement is achievable thanks to the eccentric movement of the axis connected to the flywheel. The toggle plate protects the swing jaw, incase foreign material is found in the crushing chamber, by breaking which stops the swing jaw and prevents damage.

Admission capacity

The design of the Boratas jaw crushers offers a deep enough feeding depth allowing a very high intake capacity as well as an optimal flow of material without issues. This is due to the dimensions of the feeding opening which is well balanced with the dimensions of the whole machines.

Maintenance

The parts subject to wear are easily replaceable which is why our machines are so easy to maintain. In case of the presence of unwanted iron parts, the swing jaw is equipped with toddling plates to provide ease of breakage to protect the crusher from any damage. The toggle seats are designed to be easily replaced and not to be lubricated again.

Crushing chamber

In order to guarantee an optimal material flow in the grinding chamber, our engineers were able to find the optimum angle of inclination between fixed and swing jaws. The angle of inclination is very crucial since, if adjusted optimally, it reduces the wear rate of the jaw crusher components, which means less maintenance cost and lost time.

Production and reduction ratio

The top to bottom movement of the swing jaw presses the material against the fixed jaw towards the bottom of the grinding chamber and crushes it. This increases the reduction rate and guarantees a high production rate.

Characteristics of the Jaw Crusher:

• Crushing of all kinds of materials and stones no matter how sturdy and abrasive they are

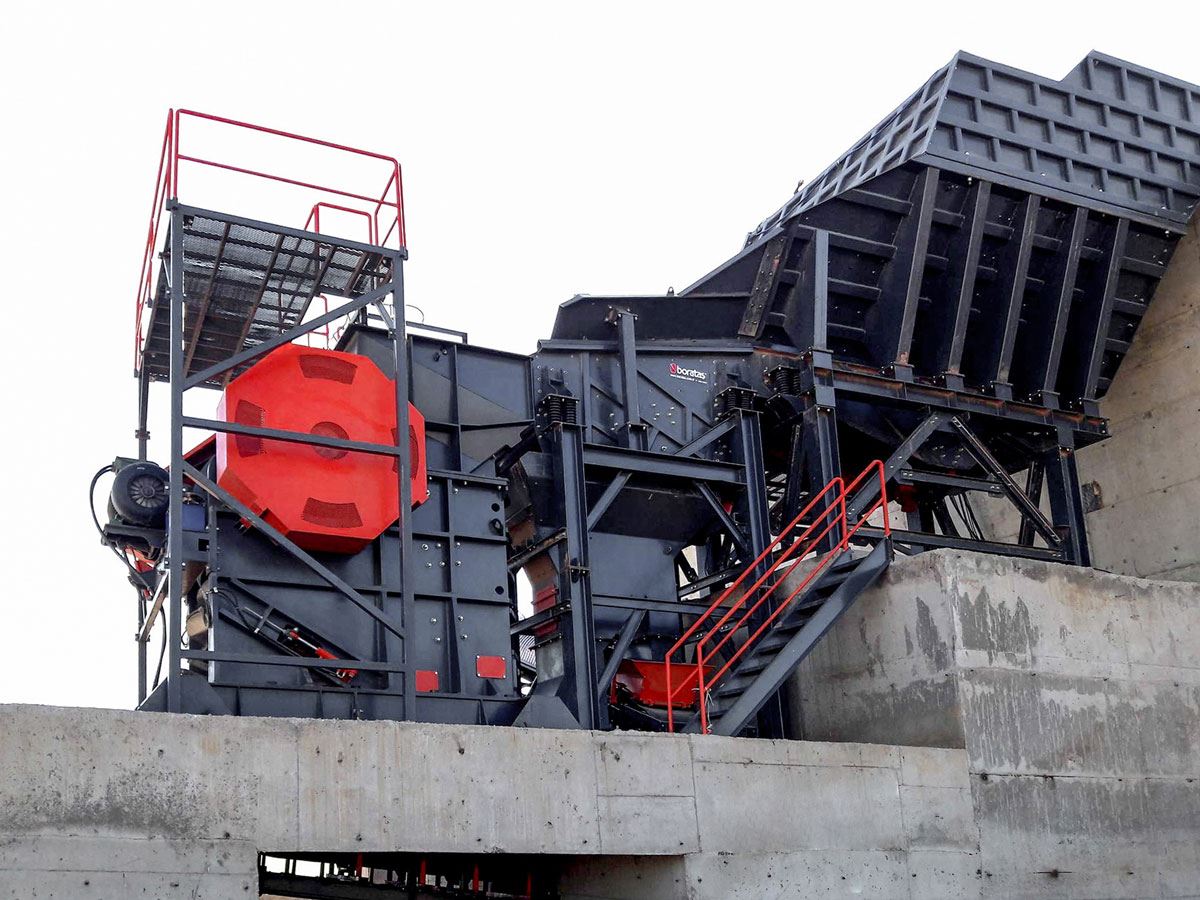

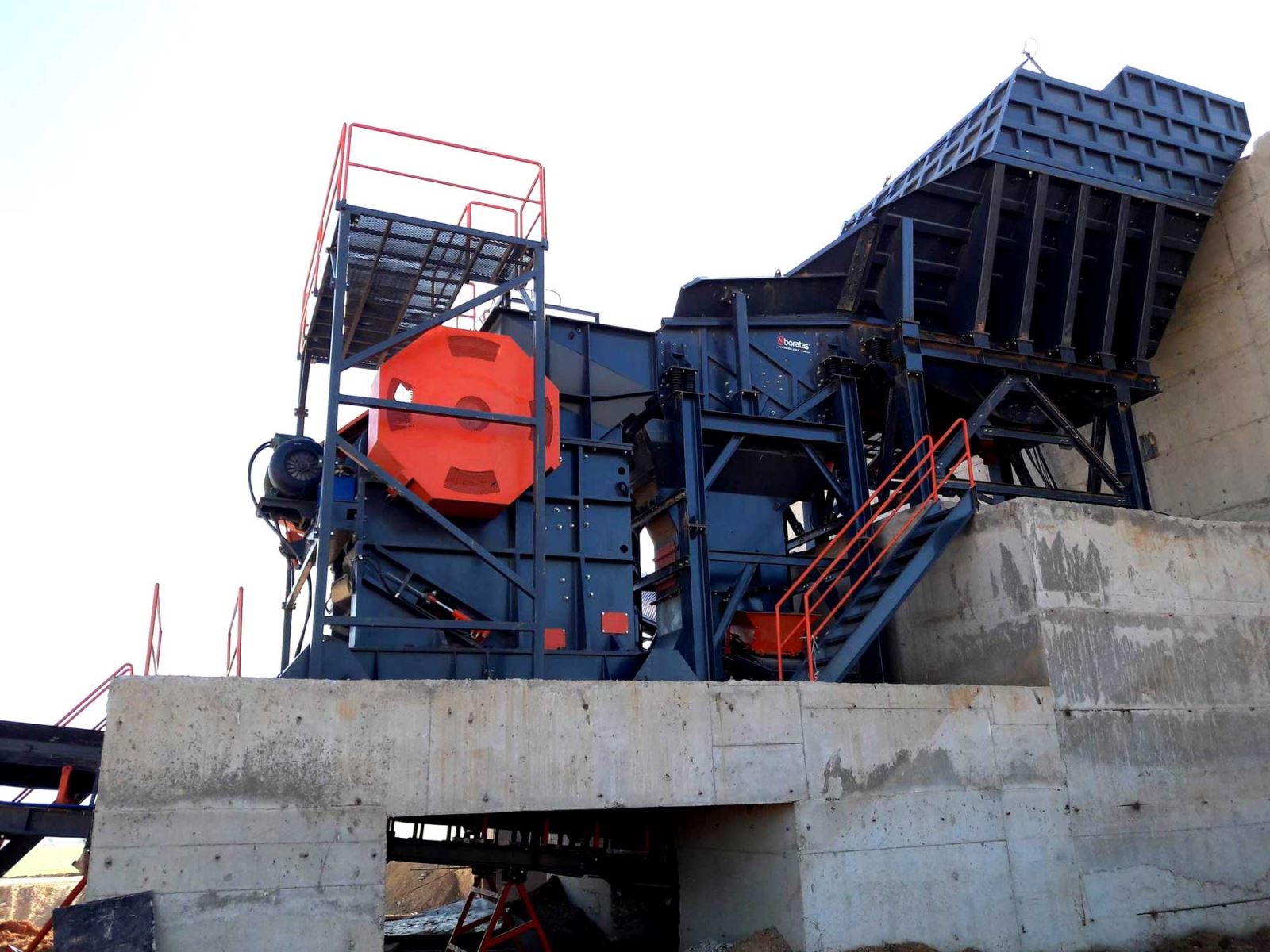

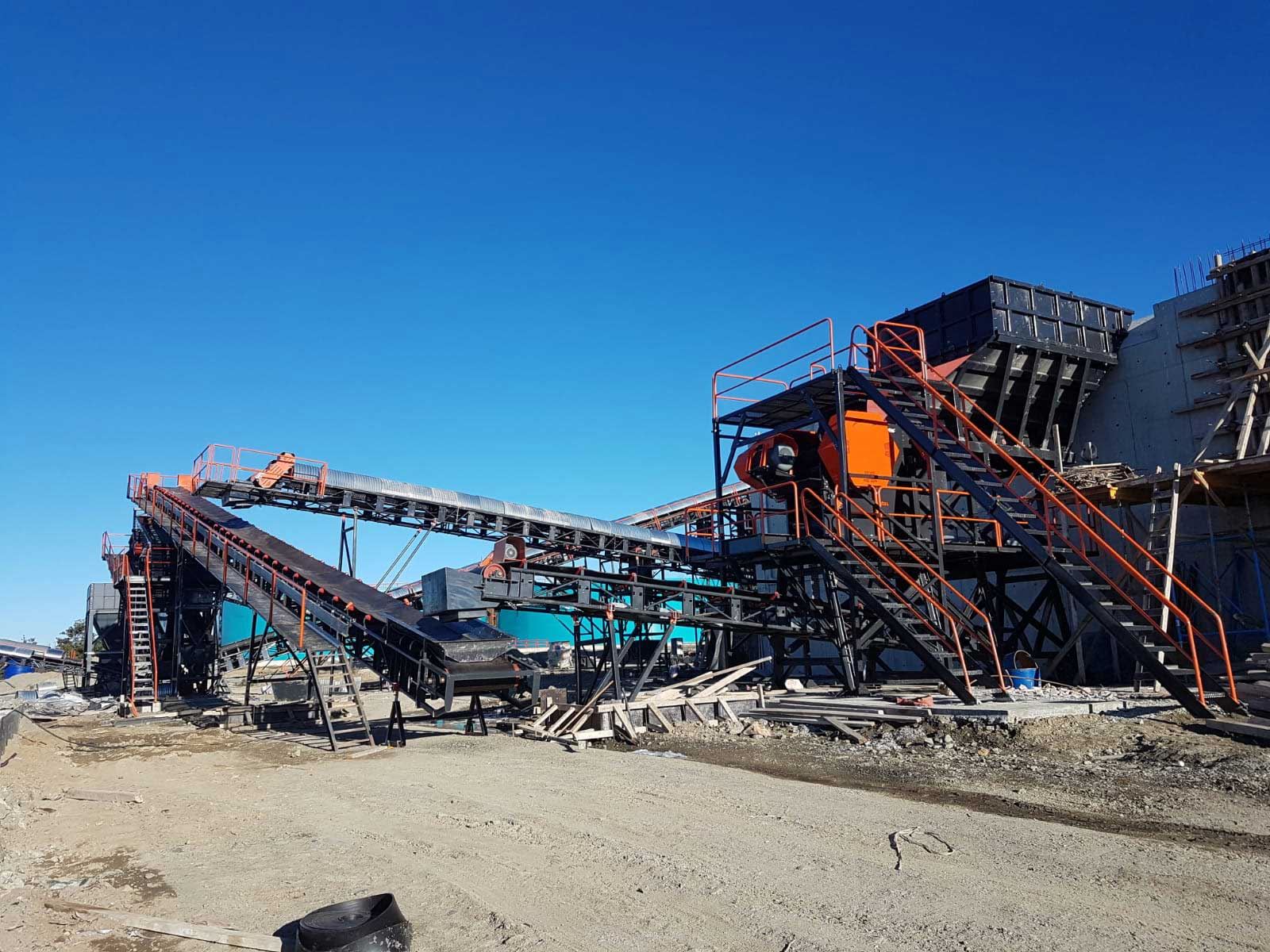

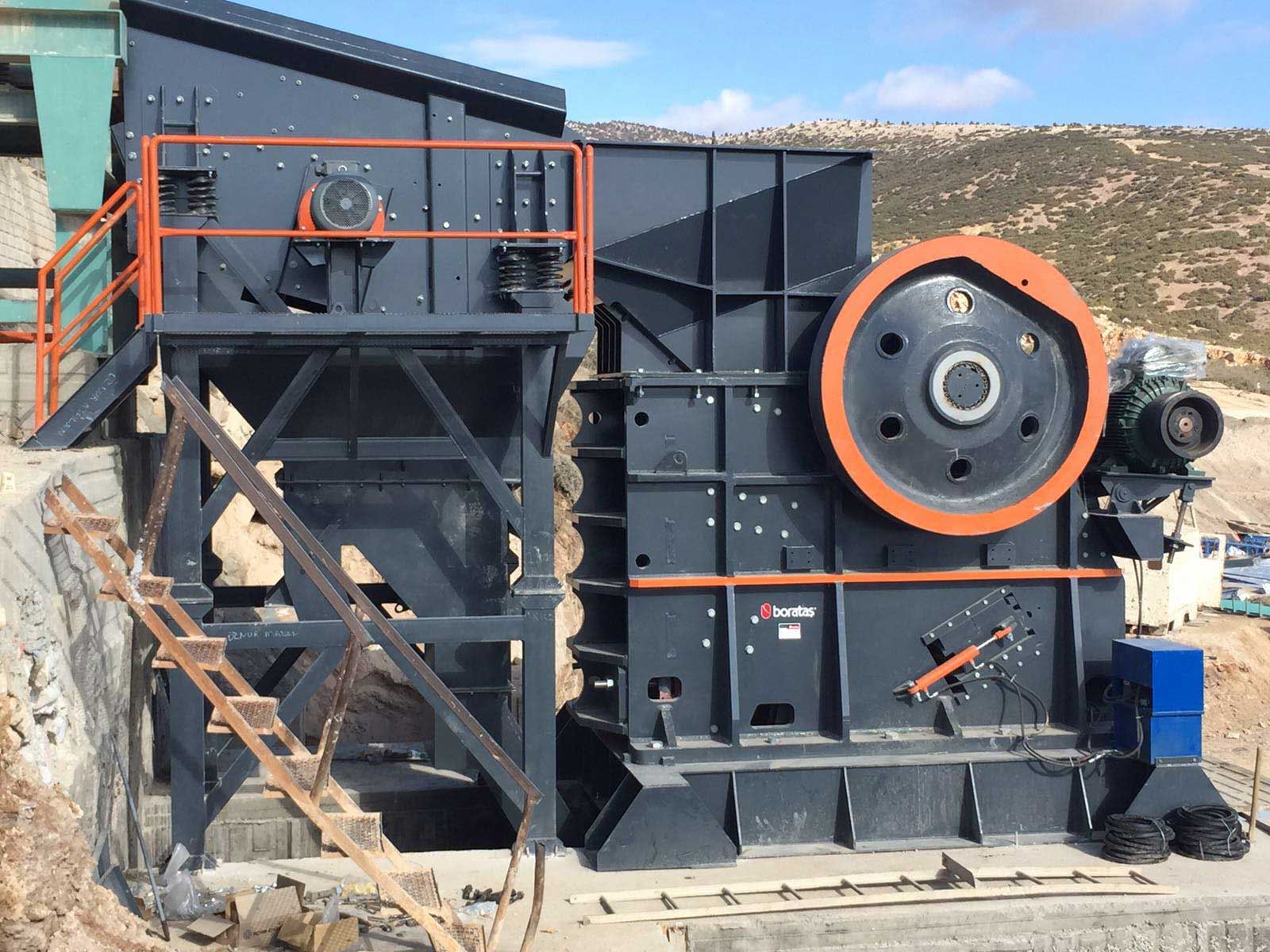

• Usable in mobile and fixed installations
• Applicable to surface as well as underground quarries
• Usable in the primary and secondary crushing operation depending on the size of the machine

Advantage:

• High efficiency and durability
• High continuous crushing performance
• Easily maintainable
• High reduction ratio
